Shapes

Now comes the question of how does the veracity transition to “is not in the set” (0 or false) to “is in the set” (1 or true). The most intuitive is that the transition may be linear, i.e. if a set starts at 0 up to 100, the crisp value 50 has a veracity of 0.5 and the crisp value 25 has a veracity of 0.25.

This set can be represented by a graph where the values are on the horizontal axis and the veracity is on the vertical axis:

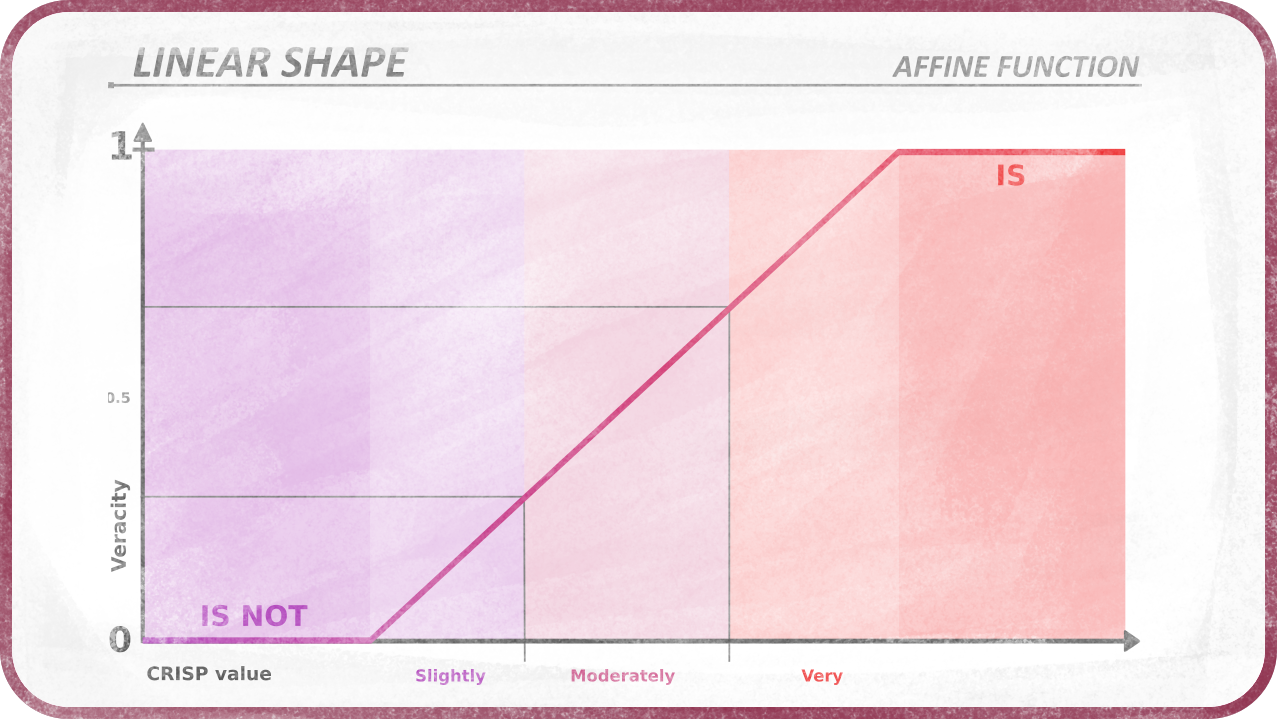

Linear shape

Its shape is linear.

It may be interesting to change the shape of the set, to better reflect what the value represents or what it may be used for.

Sigmoid shape

The shape of the set is given by a membership function. It is a function which takes any given value as variable and which result is the veracity of the inclusion of this value in the set, a.k.a its membership. Membership functions can be any function and generate any kind of shape.

Common shapes and membership functions

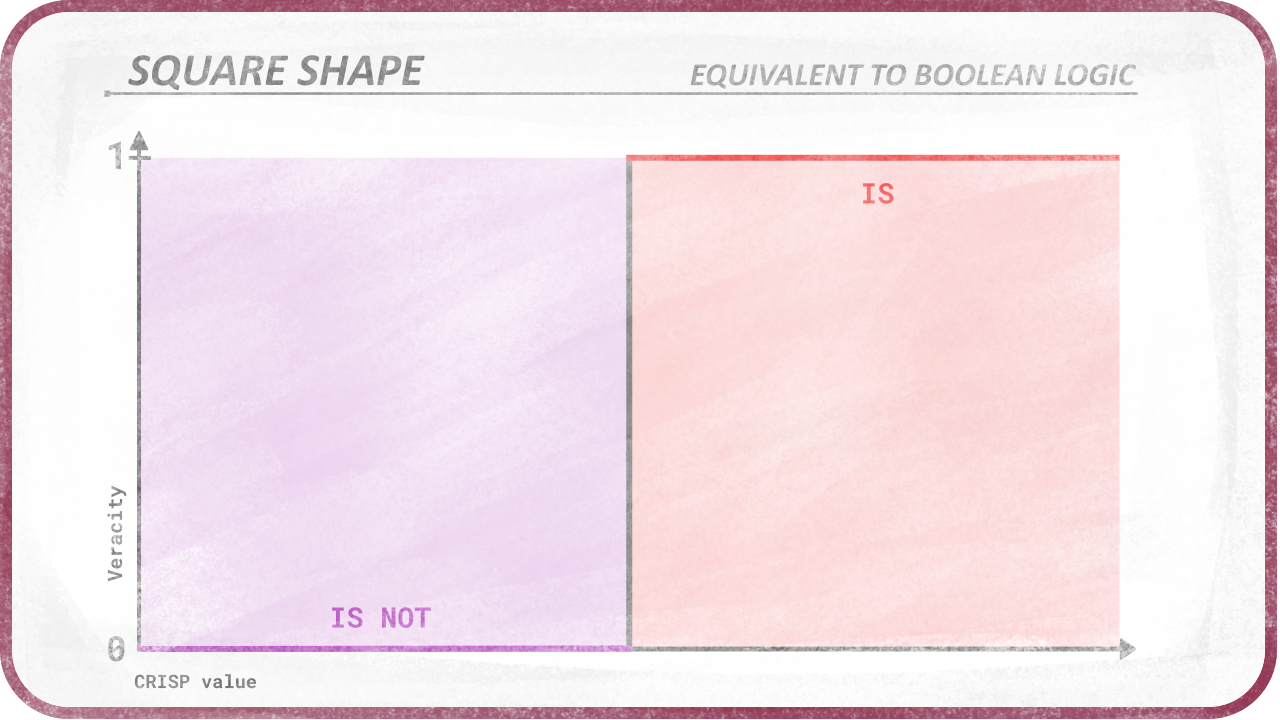

Square shape
“IF value > limit THEN veracity IS 1 ELSE veracity is 0”

Linear shape
A simple linear function

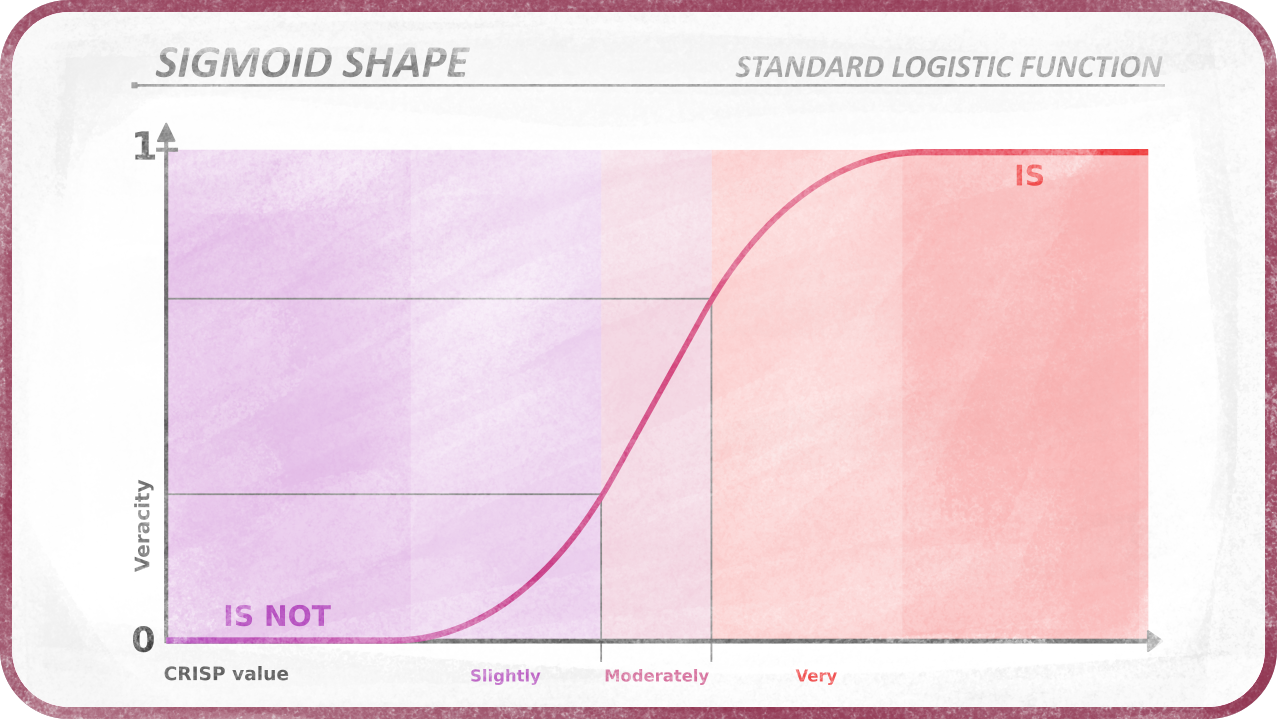

Sigmoid shape
An S-shaped function, which can be the standard logistic function

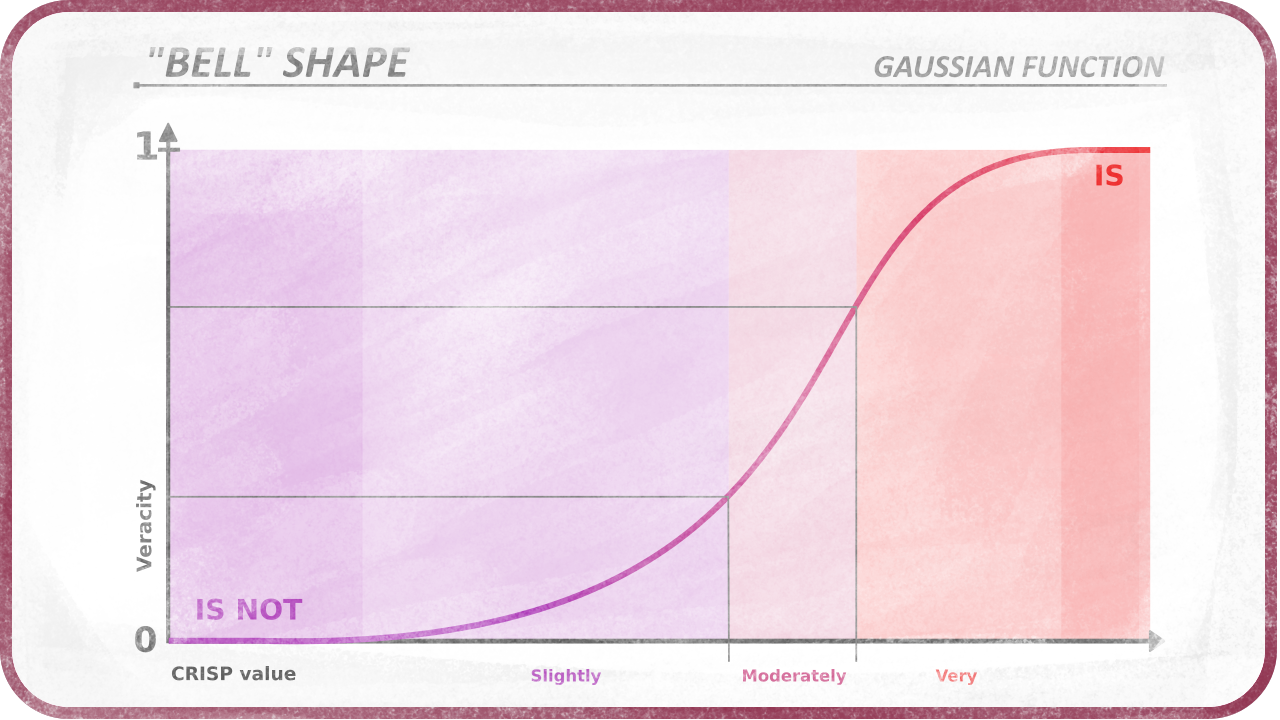

Gaussian shape
An bell-shaped function, which is the gaussian function

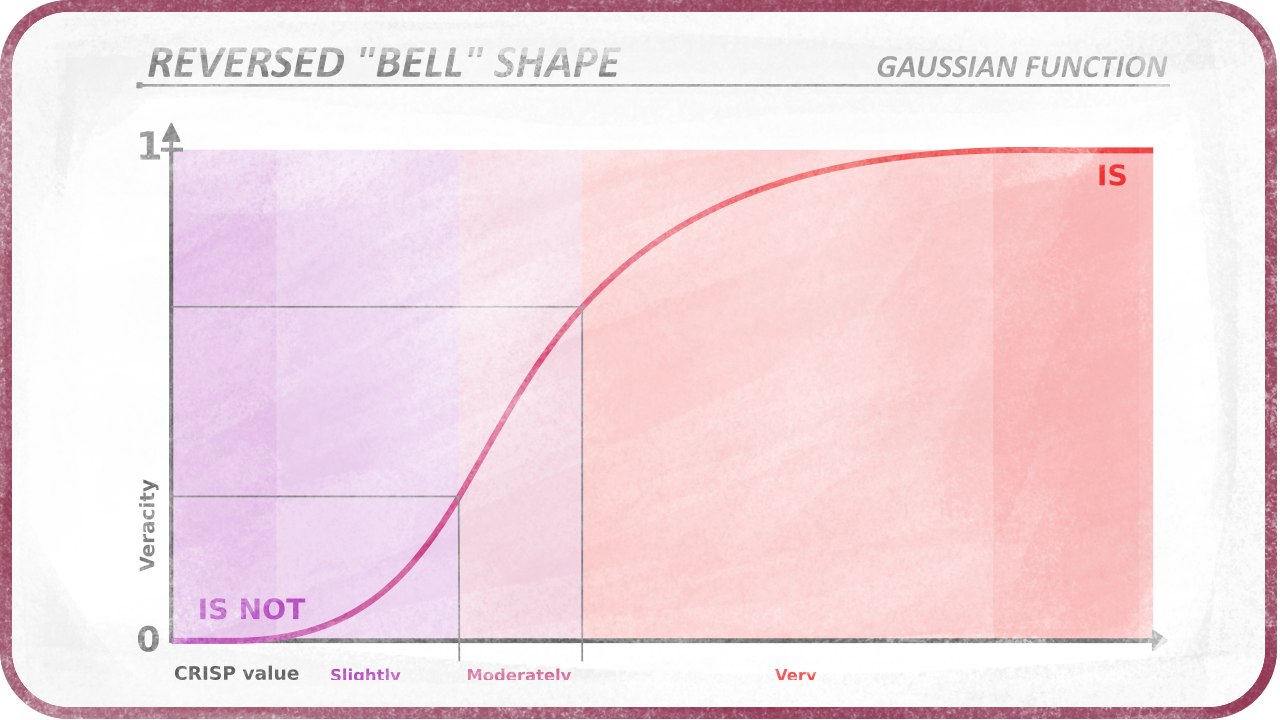

Reversed Gaussian shape
The bell-shaped function may be useful in its reversed form too.

It is also possible to use a Bézier curve to define a parametric shape, or any other function.

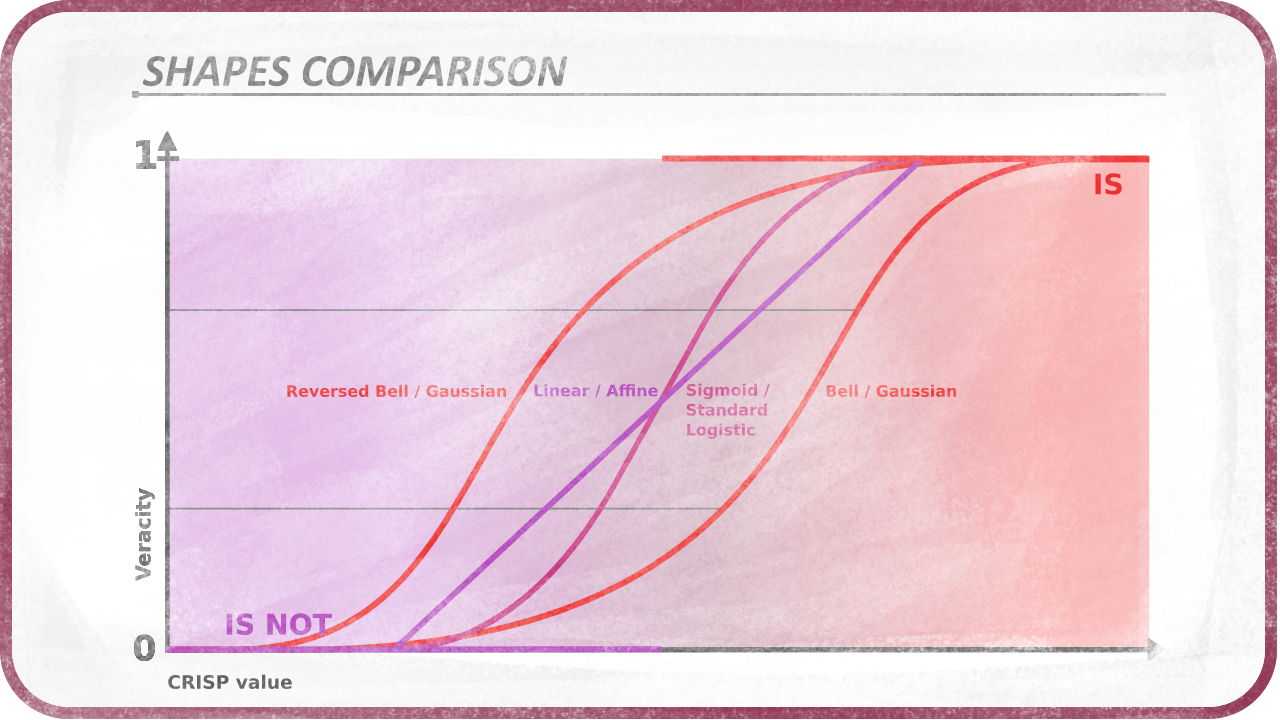

Shapes Comparison

Note that a given crisp value can be above or below a set. For example, 0⁰C is not in the set “comfortable”, neither is 50⁰C. In this case, the “comfortable” set can have a shape with two sides:

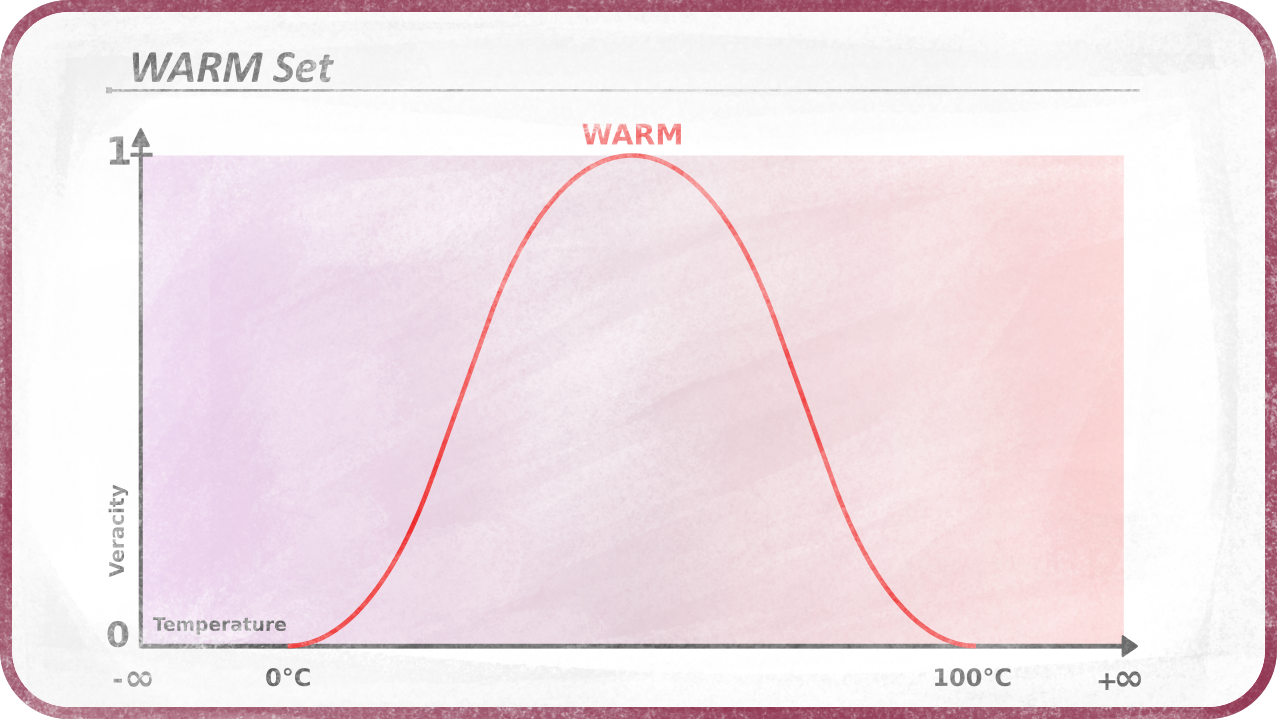

Warm set

It is also possible to have a plateau where all values are equally (and indifferentially) in the set, or true.

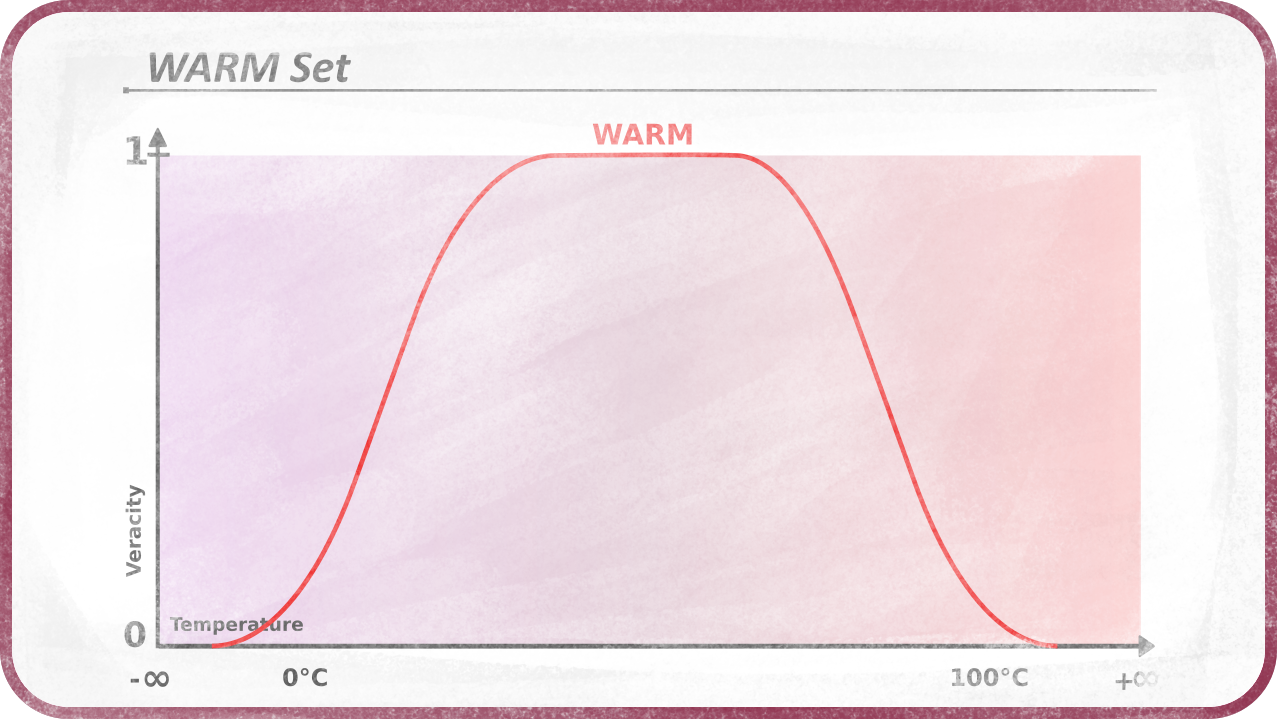

Warm set with plateau

Combining shapes

Combining several shapes, it is possible to represent any crisp value from -inifinity to +infinity.

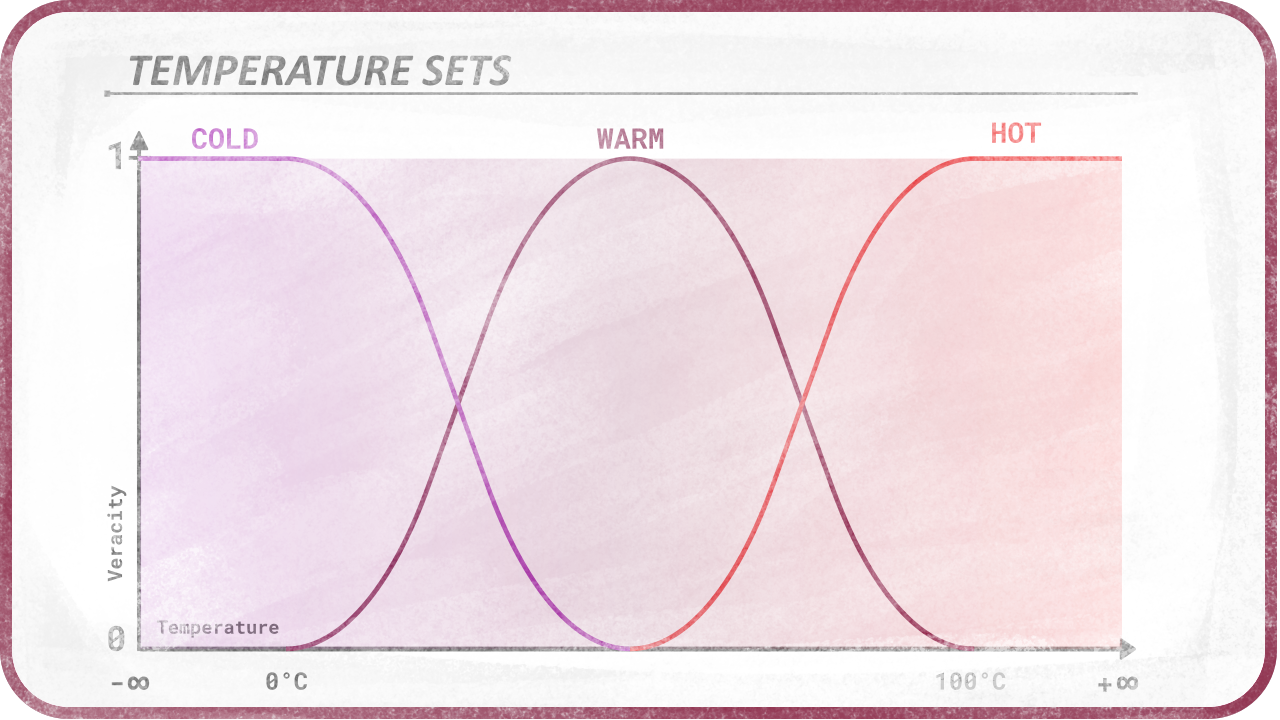

Temperature sets

This reasoning is for 1-dimensionnal sets, but we could imagine 2 or 3-D sets, which would be represented by a fuzzy area or a fuzzy volume, allowing to quantify 2-D or 3-D values or vectors.

And it is also possible to build n-dimension sets to test n-dimension values (e.g. an RGB color with Alpha which is 4D) but the more dimensions, the more complex the functions for defining the shapes are.
